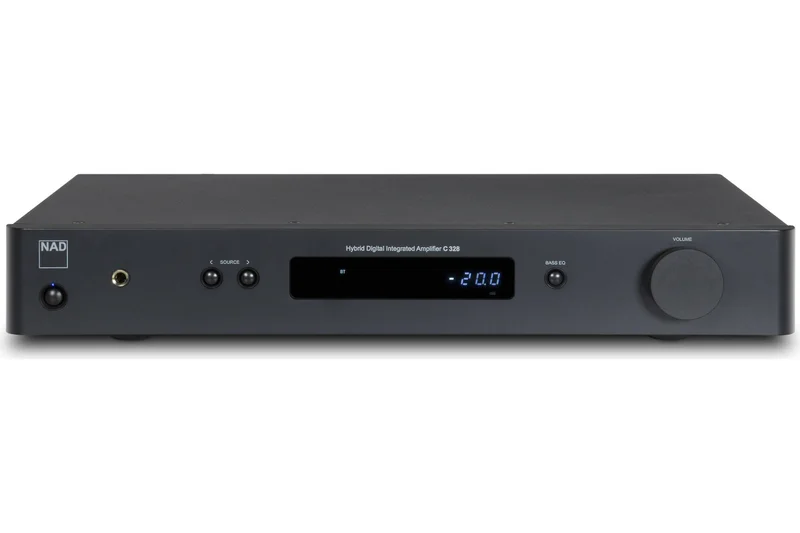

![NAD C 328 [Integrated Amplifiers] (Arrives in 21 days)](https://www.maxrecordvibe.com/wp-content/uploads/product-image/nad-c-328-integrated-amplifiers-arrives-in-21-days.webp)
Description
Introduction
The NAD C 328 is the perfect gateway amplifier for audiophiles who value clean, powerful sound and sophisticated engineering without the frills. Designed with NADs legendary sound quality in mind, the C 328 integrates high-performance digital circuits, Bluetooth streaming, and an MM phono stage in a compact and efficient design. Whether you’re building your first high-fidelity setup or upgrading an existing system, the C 328 delivers refined, dynamic audio performance with unmatched value.
Key Features
- 50W Continuous Power into 8 and 4
- High-Performance MM Phono Input with RIAA Equalization
- Bluetooth Wireless Streaming
- Dedicated Headphone Amplifier
- Subwoofer Output for Extended Bass
- Class D Amplification with Hypex UcD Output Stage
- Eco and Control Standby Modes (<0.6W consumption)
- Compact Design with Full-Functionality
Technical Specifications
| Section | Specification |
|---|---|
| Continuous Output Power (8/4) | 50W (ref. 20 Hz20 kHz, both channels driven) |
| THD (Analogue In/Headphone Out) | <0.005 % at 1 V out |
| Signal-to-Noise Ratio (Headphone Out) | >100 dB (A-weighted, 32, ref. 2V out) |
| Frequency Response (Headphone Out) | 0.3 dB (20 Hz 20 kHz) |
| Output Impedance (Headphone) | 11 |
| THD (Subwoofer Out) | <0.005 % at 1 V out |
| Output Impedance (Subwoofer) | 200 |
| THD (Speaker Out) | <0.03 % (100 mW to 40 W, 8 and 4) |
| Signal-to-Noise Ratio (Speaker Out) | >95 dB (A-weighted, 500 mV input, ref. 1W out 8) |
| THD (Phono In/Speaker Out) | <0.03 % (200 mW to 40 W, 8 and 4) |
| Signal-to-Noise Ratio (Phono In) | >75 dB (A-weighted, ref. 5mV input 1kHz, 1W output in 8) |
| RIAA Frequency Response | 0.3 dB (20 Hz 20 kHz) |
| Power Consumption (ECO Standby) | 0.5W |
| Power Consumption (Control Standby) | 0.6W |
| Power Consumption (OFF Mode) | 0W |
| Dimensions (W x H x D) | 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4″) |
| Net Weight | 4.9 kg (10.8 lbs) |
