Description

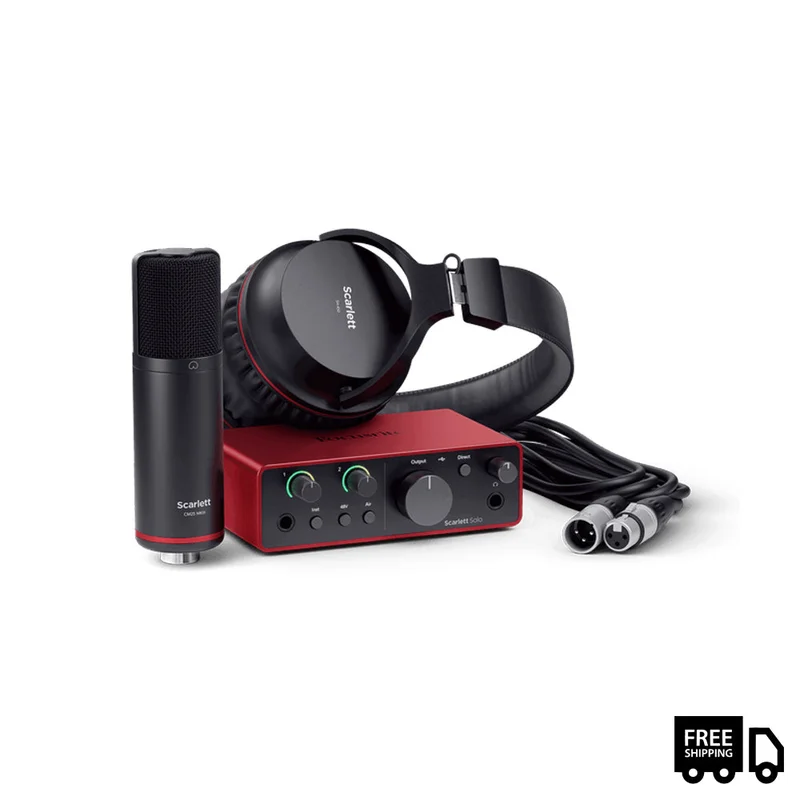

Scarlett Solo Studio

The complete songwriter’s studio

Description

Scarlett Solo Studio is everything you need to make your first hit record, right now. Connect theCM25 MkIII studio condenser micto Solosdetailed, ultra-low-noise mic preand it sounds great right away. Plug a guitar into theHi-Z instrument input, it feels just like an amp. Then listen in stunning clarity with theSH-450 headphones.

Studio-grade converters, with ahuge 120dB dynamic rangedeliver the audio performance you’d find in a pro studio. Air mode, withPresenceandHarmonic Drive, gives you that big console sound wherever you record. Solosamped-up headphone output with independent volume controldrives your headphones loud and clear. Need software? TheHitmaker Expansion software bundleincludes all the tools you need to record, produce and release your tracks.

Technical Specifications :

Specifications in detail

Overview

• Number of Microphone Preamps1
• Phantom PowerYes
• Instrument Inputs1
• Line Inputs1
• Air ModeYes
• Line Outputs2
• Headphone Outputs1
• LoopbackYes
• ConnectivityUSB Type-C
• ProtocolUSB 2.0
• Form FactorDesktop
• Simultaneous I/O4 x 2 (including Loopback inputs)
• A/D Resolution24-bit/192 kHz
• Bus PoweredYes (900mA)
• MicrophoneCM25 MKIII Condenser
• HeadphonesSH-450 Closed-back
• XLR Cable3m

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response20-20kHz 0.06dB
• Dynamic Range113dB (A-Weighted)
• THD+N-100dB @ minimum gain
• Noise EIN-127dBu (A-Weighted)
• Maximum Input Level9.5dBu
• Gain Range57dB
• Impedance3k

Line inputs

• Frequency Response20-20kHz 0.05dB
• Dynamic Range113dB (A-Weighted)
• THD+N-100dB @ minimum gain
• Maximum Input Level22dBu
• Gain Range57dB
• Impedance60k

Instrument inputs

• Frequency Response20-20kHz 0.15dB
• Dynamic Range112dB (A-Weighted)
• THD+N-80dB @ minimum gain
• Maximum Input Level12dBu
• Gain Range57dB
• Impedance1M

Line outputs (Balanced)

• Frequency Response20-20kHz 0.02dB
• Dynamic Range120dB
• THD+N-109dB
• Maximum Output Level16dBu
• Impedance200

Headphone outputs

• Frequency Response20-20kHz 0.1dB @ 33 / 300
• Dynamic Range112dB @ 33
  115dB @ 300
• THD+N-97dB @ 33
  -102dB @ 300
• Maximum Output Level2.5dBu into 33
  10dBu into 300
• Maximum Output Power32mW into 33
  22mW into 300
• Impedance50

Analogue to Digital Converter

• THD+N-110dB
• Dynamic Range120dB

Digital to Analogue Converter

• THD+N-115dB
• Dynamic Range130dB (A-Weighted)

Power

• USB900mA
