Description

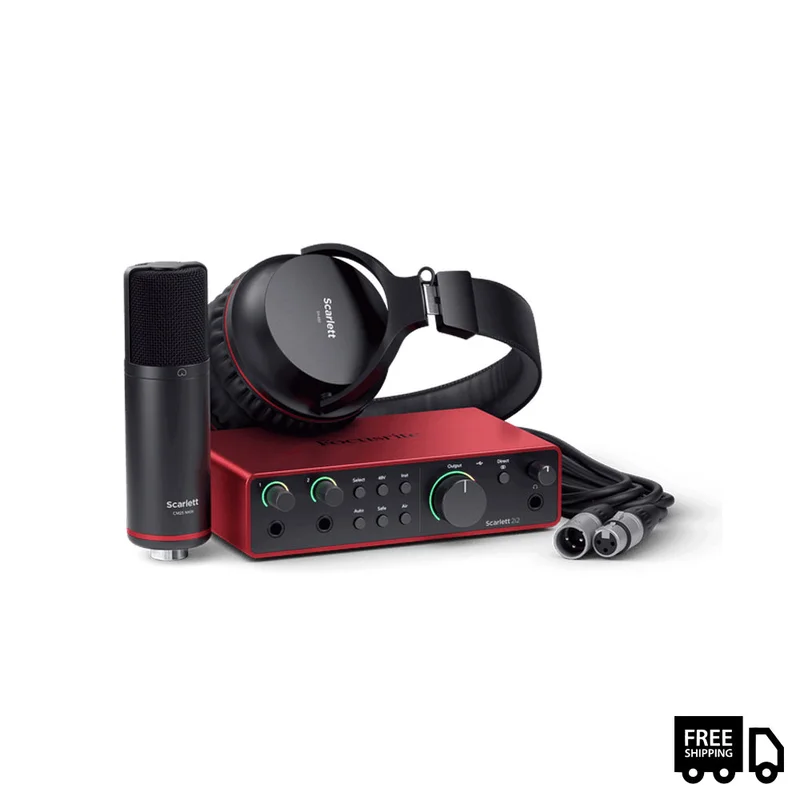

Scarlett Solo Studio

The complete studio for the artist

Scarlett 2i2 Studio is everything you need to record your music to release-ready standards. Hook up theCM25 MkIII condenser microphoneto our mostdetailed ultra-low-noise mic preamps. Plug guitars straight in to 2i2’sHi-Z inputs. Connect keys and synths to thesuper-high-quality line ins. Then listen in detail with theSH-450 headphones.

Auto GainandClip Safemake sure you’ll never need to worry about your levels. Air mode, withPresenceandHarmonic Drive, gives you that big console sound wherever you record. And theHitmaker Expansion software bundleincludes all the tools you need to record, produce and release your tracks.

Technical Specifications :

Overview

• Number of Microphone Preamps2
• Phantom PowerYes
• Instrument Inputs2
• Line Inputs2
• Air ModeYes
• Auto GainYes
• Clip SafeYes
• Line Outputs2
• Headphone Outputs1
• LoopbackYes
• ConnectivityUSB Type-C
• ProtocolUSB 2.0
• Form FactorDesktop
• Simultaneous I/O4 x 2 (including Loopback inputs)
• A/D Resolution24-bit/192 kHz
• Bus PoweredYes (900mA)
• MicrophoneCM25 MKIII Condenser
• HeadphonesSH-450 Closed-back
• XLR Cable3m

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response20-20kHz 0.06dB
• Dynamic Range116dB (A-Weighted)
• THD+N-100dB @ 8dB gain
• Noise EIN-127dBu (A-Weighted)
• Maximum Input Level16dBu
• Gain Range69dB
• Impedance3k

Line inputs

• Frequency Response20-20kHz 0.05dB
• Dynamic Range115.5dB (A-Weighted)
• THD+N-100dB @ 8dB gain
• Maximum Input Level22dBu
• Gain Range69dB
• Impedance60k

Instrument inputs

• Frequency Response20-20kHz 0.15dB
• Dynamic Range113dB (A-Weighted)
• THD+N-80dB @ minimum gain
• Maximum Input Level12dBu
• Gain Range62dB
• Impedance1M

Line outputs (Balanced)

• Frequency Response20-20kHz 0.02dB
• Dynamic Range120dB
• THD+N-109dB
• Maximum Output Level16dBu
• Impedance100

Headphone outputs

• Frequency Response20-20kHz 0.1dB @ 33 / 300
• Dynamic Range112dB @ 33
  115dB @ 300
• THD+N-99dB @ 33
  -108dB @ 300
• Maximum Output Level2.5dBu into 33
  10dBu into 300
• Maximum Output Power32mW into 33
  22mW into 300
• Impedance50

Analogue to Digital Converter

• THD+N-110dB
• Dynamic Range120dB

Digital to Analogue Converter

• THD+N-115dB
• Dynamic Range130dB (A-Weighted)

Power

• USB900mA
• External (Optional)4.5W
