Description

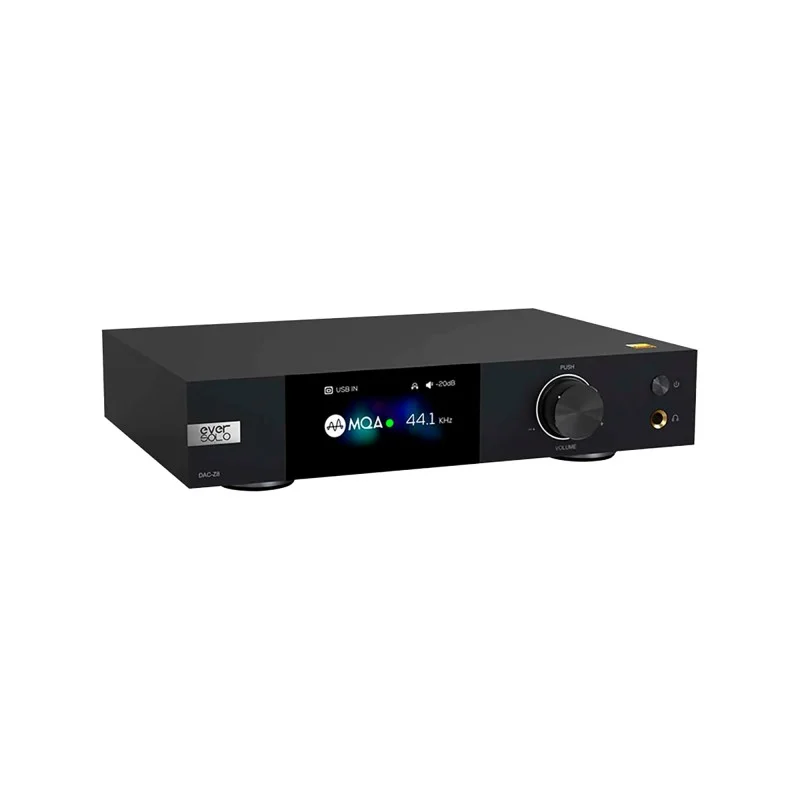

EverSolo DAC-Z8 High-Performance Digital-to-Analog Converter
Experience audiophile-grade sound with the EverSolo DAC-Z8, featuring the flagship ESS Sabre ES9038Pro DAC, dual XMOS XU316 processor, and high-precision clock oscillators. Supporting DSD512, PCM768kHz@32Bit, and full MQA decoding, the DAC-Z8 delivers ultra-low distortion, high signal-to-noise ratio, and exceptional dynamic range. Its fully balanced architecture, professional headphone amplifier, and versatile connectivity make it a complete solution for high-fidelity audio enthusiasts.
Key Features
- Flagship ESS Sabre ES9038Pro 32-bit DAC for industry-leading audio quality
- 3rd generation XMOS XU316 for faster processing and lossless high-resolution audio transmission
- High-precision, low-jitter dual clock oscillators for accurate audio decoding
- OPA1612 I/V operational amplifier circuit with 8-channel shunt compensation technology
- Supports DSD512 Native, PCM768kHz@32Bit, and full MQA decoding
- Optical, Coaxial, USB-B, USB-C, and Bluetooth 5.0 (Qualcomm QCC5125) inputs
- Fully balanced differential amplifier circuit for XLR, RCA, and headphone outputs
- Professional monitor-level headphone amplifier (16-300) with low/high gain
- 3-inch LCD screen with customizable VU meter and colorful interface
- Low ripple switching power supply for clean and stable audio performance
- Exclusive mobile app for full control and configuration
- Aluminium CNC chassis for durability and modern design
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EverSolo DAC-Z8 |
| Display Screen | 3-inch LCD Screen |
| Chassis | Aviation aluminum alloy |
| DAC | ES9038Pro |
| Audio Processor | XMOS XU316 |
| OPA Chip | OPA1612 x10 |
| Power Supply | Low-noise switching power supply |
| Bluetooth Audio Input | Qualcomm QCC5125 BT5.0 (SBC/AAC/aptX/aptX HD/LDAC) |
| USB-B / USB-C DAC Input | DSD512, PCM768kHz 32Bit, MQA (Windows, Mac, Android, iOS) |
| Optical / Coaxial Input | PCM 192kHz 24Bit, DSD64, MQA |
| Analogue Audio Output | Preamp: XLR (balanced), RCA; Headphone: 6.35mm single-ended |
| Headphone Impedance | 16-300 (Low gain: 16-32 / High gain: 32-300) |
| XLR Audio Output | Output: 4.1Vrms@0dBFS, THD+N 0.000062% @1kHz, SNR 133dB, Frequency Response 20Hz-20kHz 0.1dB |
| RCA Audio Output | Output: 2.3Vrms@0dBFS, THD+N 0.000086% @1kHz, SNR 126dB, Frequency Response 20Hz-20kHz 0.1dB |
| Headphone Output (Low Gain) | 1.2Vrms, Max Power 45mW @32, SNR 124dB |
| Headphone Output (High Gain) | 2.8Vrms, Max Power 26mW @300, SNR 124dB |
| Frequency Response | 20Hz-20kHz 0.1dB |
| Power Input | AC 110~240V 50/60Hz |
| Rated Power | 9W |
| Dimensions (WxDxH) | 270mm x 187mm x 50mm |
| Packing List | Remote control x1, Power cable x1, USB cable x1, Product manual x1 |
