Description

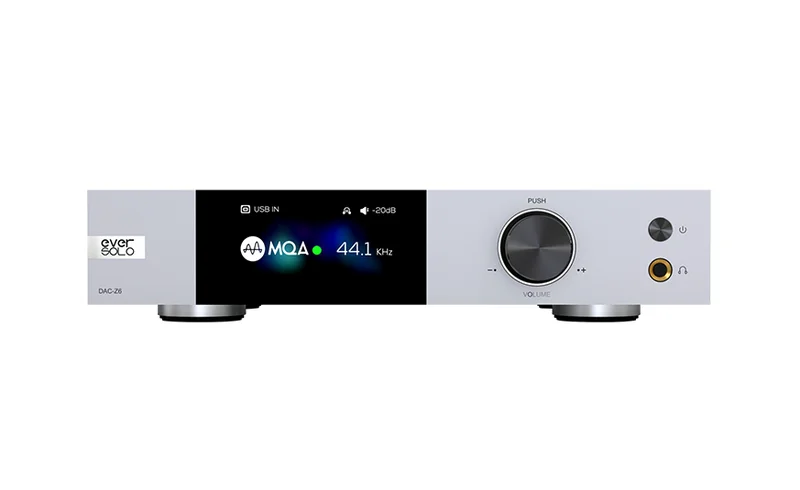

EverSolo DAC-Z6 Digital-to-Analog Converter
Experience pristine audio performance with the EverSolo DAC-Z6. Equipped with dual ES9068 DAC chips, a 3rd-generation XMOS XU316 processor, and high-precision dual clock oscillators, this DAC ensures ultra-low jitter, full-resolution decoding up to DSD512 and PCM 768kHz, and professional-grade audio output. Its fully balanced architecture, powerful headphone amplifier, and versatile connectivity options make it a perfect solution for audiophiles seeking pure, high-fidelity sound.
Key Features
- Dual ES9068 DAC chips for independent dual-channel decoding
- 3rd-generation XMOS XU316 processor for higher performance
- High-precision, low-jitter dual clock oscillators
- Supports DSD512 Native and PCM 768kHz@32Bit decoding
- Full MQA decoding and rendering via Optical, Coaxial, and USB
- Qualcomm QCC5125 Bluetooth 5.0 module with SBC/AAC support
- Fully balanced audio architecture with differential amplifier and professional calibration
- High-performance headphone output supporting 16-300 impedance
- 3-inch LCD display with diverse VU meter modes
- Low-ripple, high-quality power supply for pure audio
- Exclusive mobile app for remote control and global operation
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EverSolo DAC-Z6 |
| Display | 3-inch LCD screen |
| Chassis | Aluminum Alloy |
| DAC | ES9068 x2 |
| Audio Processor | XMOS XU316 |
| Op-Amp Chip | RT6863 x6 |
| Power Supply | High-quality switching power supply with low noise |
| Bluetooth | Qualcomm QCC5125, BT5.0, SBC/AAC |
| USB-B / USB-C DAC Input | Windows, Mac, Android, iOS; up to DSD512, PCM 768kHz 32Bit, MQA |
| Optical / Coaxial Input | Up to PCM 192kHz 24Bit, DSD64, MQA |
| Analog Output | Preamp: XLR + RCA; Headphone: 6.3mm single-ended |
| Headphone Impedance | 16-300 (Low gain: 16-32 / High gain: 32-300) |
| XLR Output Level | 4.1Vrms @0dBFS, THD+N 0.000094% @1kHz |
| RCA Output Level | 2.1Vrms @0dBFS, THD+N 0.000116% @1kHz |
| Headphone Output (Low Gain) | 1.2Vrms, 45mW @32 |
| Headphone Output (High Gain) | 2.8Vrms, 26mW @300 |
| Frequency Response | 20Hz-20kHz (0.15dB) |
| Power Input | AC 110-240V 50/60Hz, Max 0.35A |
| Rated Power | 9W |
| Dimensions | 270mm (W) x 187mm (D) x 50mm (H) |
| Weight | Not specified |
| Accessories | Remote control, Power cable, User manual |
